IR12 10 Bar Cut end hose and couplings

IR12-60 – Pneumatic or Hydraulic Transport of Abrasive Materials

A heavy-duty, cut-resistant hose designed for transporting abrasive materials in the mineral processing industry, coal processing plants, power stations, as well as the steel and cement industries.

• Temperature range: −35 °C to +70 °C

• Inner lining: NR/SBR, black, antistatic, abrasion-resistant, 60–65 Shore A

• Reinforcement: Textile plies, galvanized steel wire helix

• Outer cover: Black corrugated chloroprene rubber (CR), resistant to abrasion, oil, weathering, and seawater, fabric-imprinted, electrically conductive

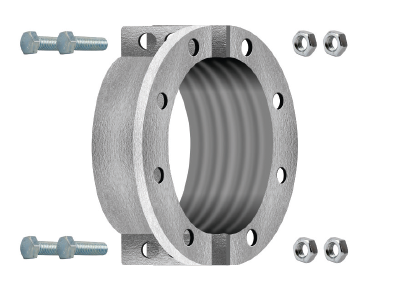

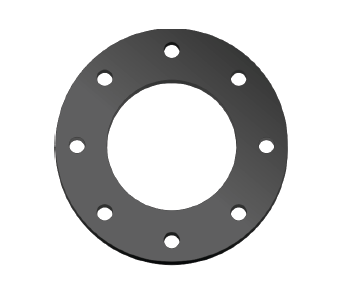

• Connections: All connections feature standard PN10 bolt patterns with a 6 mm rubber gasket

IR12-40 – Transport of Abrasive Slurries

A heavy-duty, cut-resistant hose designed for transporting abrasive slurries in the mining and quarrying industries.

• Temperature range: −35 °C to +70 °C

• Inner lining: NR/BR, black, antistatic, abrasion-resistant, 40–45 Shore A

• Reinforcement: Textile plies, galvanized steel wire helix

• Outer cover: Black corrugated chloroprene rubber (CR), resistant to abrasion, oil, weathering, and seawater, fabric-imprinted, electrically conductive

• Connections: All connections feature standard PN10 bolt patterns with a 6 mm rubber gasket

IR12-FD – Transport of Fatty Food Products

A suction and delivery hose designed for transporting fatty food liquids. Both the inner and outer layers comply with FDA requirements.

• Temperature range: −35 °C to +35 °C

• Inner lining: White nitrile rubber (NBR), non-toxic, taste- and odor-neutral, compliant with FDA 177.2600

• Reinforcement: Textile plies, galvanized steel wire helix

• Outer cover: Black corrugated chloroprene rubber (CR), resistant to abrasion, oil, weathering, and seawater, fabric-imprinted, electrically conductive

• Connections: All connections feature standard PN10 bolt patterns with a 6 mm rubber gasket

IR12-AFD – Pneumatic Transport of Abrasive Food Materials

A suction and delivery hose designed for transporting dry bulk food products such as grains, flour, sugar, beans, dry pharmaceutical products, and food starches. Both inner and outer layers meet FDA sanitary standards and allow for easy cleaning.

• Temperature range: −35 °C to +80 °C

• Inner lining: NR, abrasion-resistant, food-grade (antistatic)

• Reinforcement: Textile plies, galvanized steel wire helix

• Outer cover: Black corrugated chloroprene rubber (CR), resistant to abrasion, oil, weathering, and seawater, fabric-imprinted, electrically conductive

• Connections: All connections feature standard PN10 bolt patterns with a 6 mm rubber gasket
