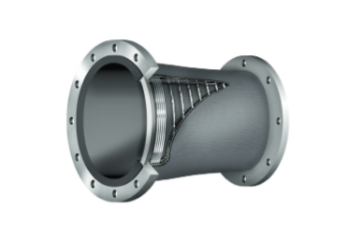

Hose reducers are designed to absorb vibrations and noise transmitted between pumps, collection sumps, and associated equipment. They ensure a smooth flow transition between pipelines and the suction and discharge connections of slurry pumps, using both eccentric and concentric reducer configurations.
Precise matching of internal diameters is critical for long service life and reliable operation. Combined with abrasion-resistant rubber compounds, this approach delivers market-leading performance at minimal cost. This is achieved through the use of high-quality natural rubber processed with advanced, modern manufacturing technologies.
Hose reducers are manufactured individually to the required length, with integrated flange options that allow direct bolting to pump suction or discharge flanges. Every aspect of standard compensator hose construction can be customized to meet specific operating requirements, including internal diameter, length, working pressure, as well as the composition and thickness of the abrasion-resistant inner lining.
Standard flange option
Bead-type (swivel) flange
Lower-cost option
Integral (fixed) flange
Temperature range: −30 °C to +80 °C
Inner lining: Black natural rubber (NR), 40 or 60 Shore
Reinforcement: High-tensile polyester tire cord; high-tensile steel wire helix (BS EN 10324:2004)
Outer cover: Black smooth CR, SBR, or EPDM rubber
Available working pressures: 3.5 / 10 / 16 bar
Safety factor: 3:1
Vacuum rating: −0.85 bar
Marking: According to customer requirements
Ends: Standard bead-type (swivel) flanges; other types available upon request
Design Features
Available in a wide range of sizes
Excellent compatibility and vibration compensation
Easy installation
Hard-wall versions available (with steel wire helix) for suction and pressure systems, as well as soft-wall versions (without steel wire helix) for medium-flow (delivery) applications only
Hose Reducer Technical Data Table

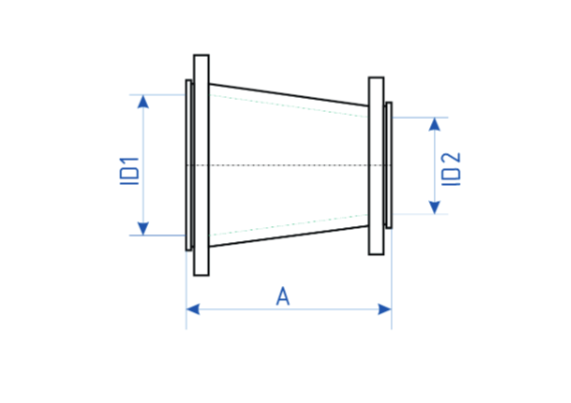

| Hose Code | Inner Diameter 1 (in.) | Inner Diameter 1 (mm) | Inner Diameter 2 (mm) | Wall Thickness (mm) | Working Pressure (bar) | Burst Pressure (bar) | Hose Weight (kg) | Standard Length A (mm) |
|---|---|---|---|---|---|---|---|---|
| HR10S-076 | 3 | 76 | 51 | 11.5 | 10 | 30 | 9 | 380 |
| HR10S-102 | 4 | 102 | 76 | 11.5 | 10 | 30 | 11 | 380 |
| HR10S-127 | 5 | 127 | 102 | 12.5 | 10 | 30 | 13.5 | 380 |
| HR10S-152 | 6 | 152 | 127 | 13.0 | 10 | 30 | 19.5 | 380 |
| HR10S-203 | 8 | 203 | 152 | 14.5 | 10 | 30 | 26.5 | 380 |
| HR10S-254 | 10 | 254 | 203 | 18.5 | 10 | 30 | 39 | 380 |
| HR10S-305 | 12 | 305 | 254 | 19.5 | 10 | 30 | 52 | 380 |
* Custom inner diameters are available upon request.
** Product specifications may vary depending on the region.
