Hose compensators are designed to absorb vibrations and noise transmitted between pumps, tanks (wells), and associated equipment. They also ensure smooth flow transition between pipelines and the suction and discharge connections of slurry pumps, using both eccentric and concentric reducer configurations.
Matching internal diameters is critically important for long-term performance and reliability. Combined with abrasion-resistant rubber compounds, this ensures best-in-class performance at the lowest possible cost. This is achieved by using the highest-quality natural rubber and processing it with advanced manufacturing technologies.
Hose compensators are manufactured to order, in specified lengths, with integrated flange options that allow direct bolting to pump suction or discharge flange surfaces. Every aspect of standard compensator hose construction can be customized to suit specific operating conditions, including internal diameter, length, working pressure, as well as the material and thickness of the abrasion-resistant inner lining.
Standard flange option
Bead-type (swivel) flange
Lower-cost option
Integrated (fixed) flange
Temperature range: −30 °C to +80 °C
Inner lining: black natural rubber (NR), 40 or 60 Shore
Reinforcement: high-tensile polyester cord, high-tensile steel wire helix (BS EN 10324:2004)
Outer cover: black smooth CR, SBR, or EPDM rubber
Available working pressure: 3.5 / 10 / 16 bar
Safety factor: 3:1
Vacuum rating: −0.85 bar
Marking: according to customer requirements
Ends: standard bead-type (swivel) flanges; other types available upon request
Design Features
Wide range of available sizes and reduction ratios
Matched to pump suction and discharge internal diameters
Easy installation
Excellent axial alignment and vibration compensation
Available in both hard-wall and soft-wall configurations
Hose Technical Data

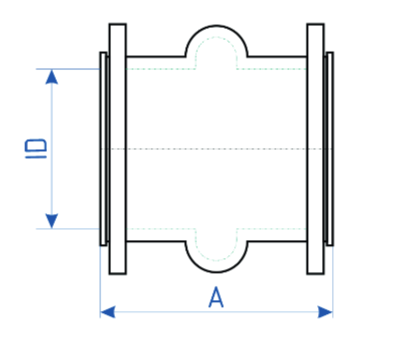

| Hose Code | Inner Diameter (in.) | Inner Diameter (mm) | Outer Diameter (mm) | Wall Thickness (mm) | Working Pressure (bar) | Burst Pressure (bar) | Hose Weight (kg) | Standard Length A (mm) |
|---|---|---|---|---|---|---|---|---|
| HC10S-076 | 3 | 76 | 99 | 11.5 | 10 | 30 | 9 | 250 |
| HC10S-102 | 4 | 102 | 125 | 11.5 | 10 | 30 | 11 | 250 |
| HC10S-127 | 5 | 127 | 152 | 12.5 | 10 | 30 | 13.5 | 250 |
| HC10S-152 | 6 | 152 | 178 | 13.0 | 10 | 30 | 19.5 | 250 |
| HC10S-203 | 8 | 203 | 232 | 14.5 | 10 | 30 | 26.5 | 250 |
| HC10S-254 | 10 | 254 | 291 | 18.5 | 10 | 30 | 39 | 250 |
| HC10S-305 | 12 | 305 | 344 | 19.5 | 10 | 30 | 52 | 250 |
| HC10S-356 | 14 | 356 | 399 | 21.5 | 10 | 30 | 60 | 250 |
Notes:
Custom inner diameters are available upon request.
Product specifications may vary depending on the region.
